Flake Floors
Engineered for Edmonton garages: 100% solids epoxy base for concrete adhesion, full decorative flake broadcast, and a UV-stable polyaspartic clear coat for hot tire and road salt resistance. 10-year warranty. Double garage starting at $2,800.
Get a Quote for Flake FloorsBefore & After
Drag to compare. Three real Greater Edmonton Area garages.

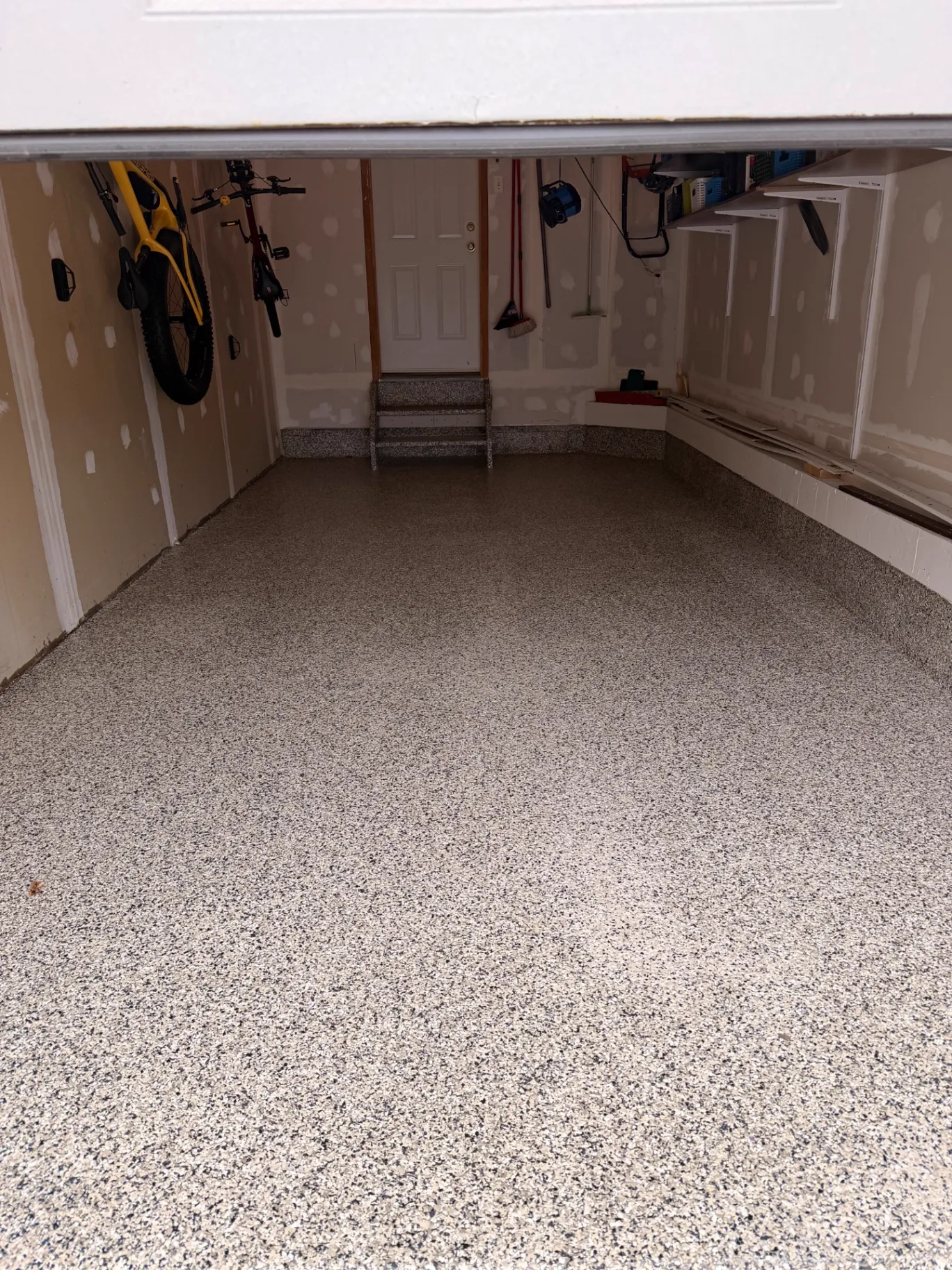

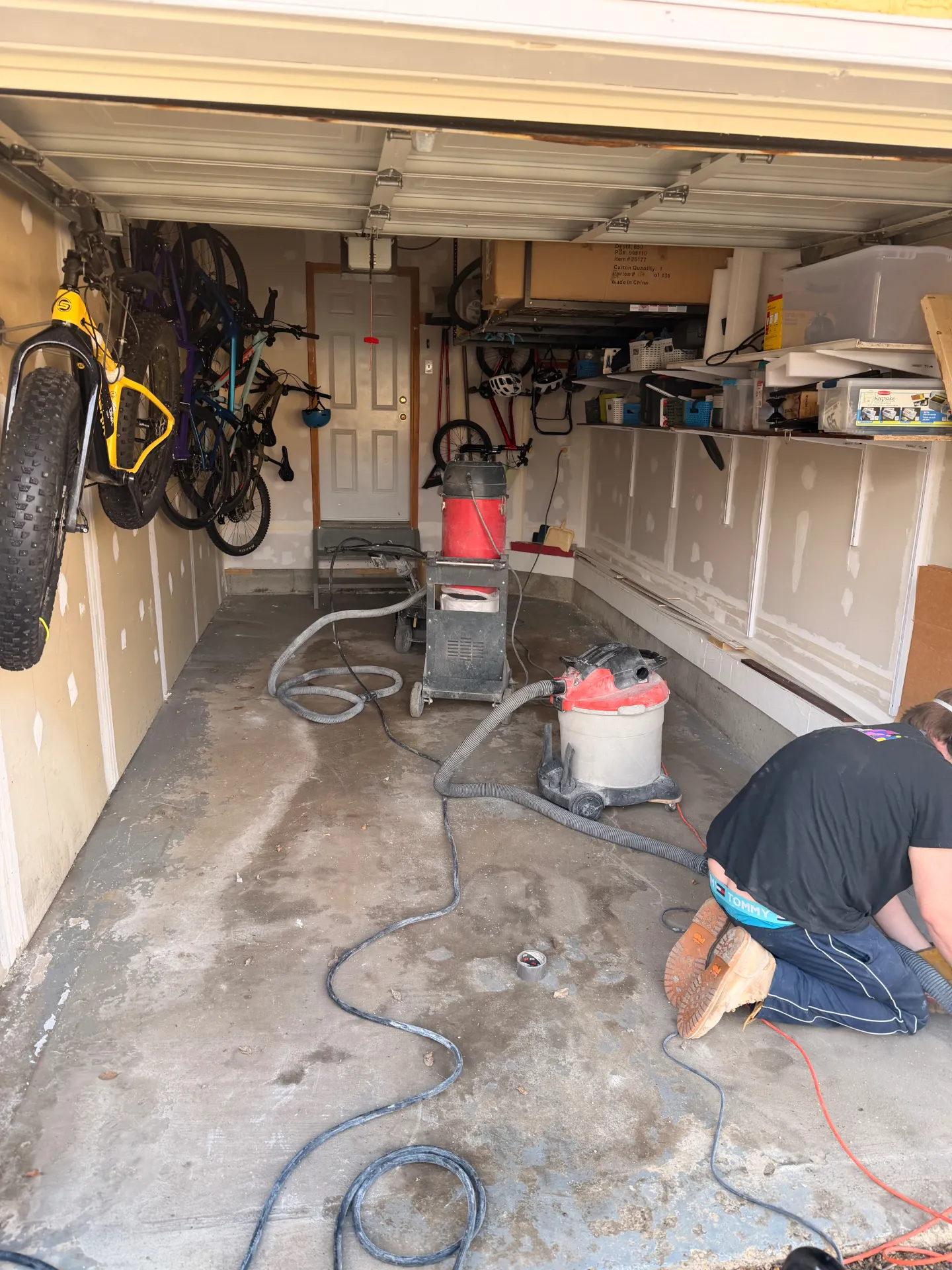

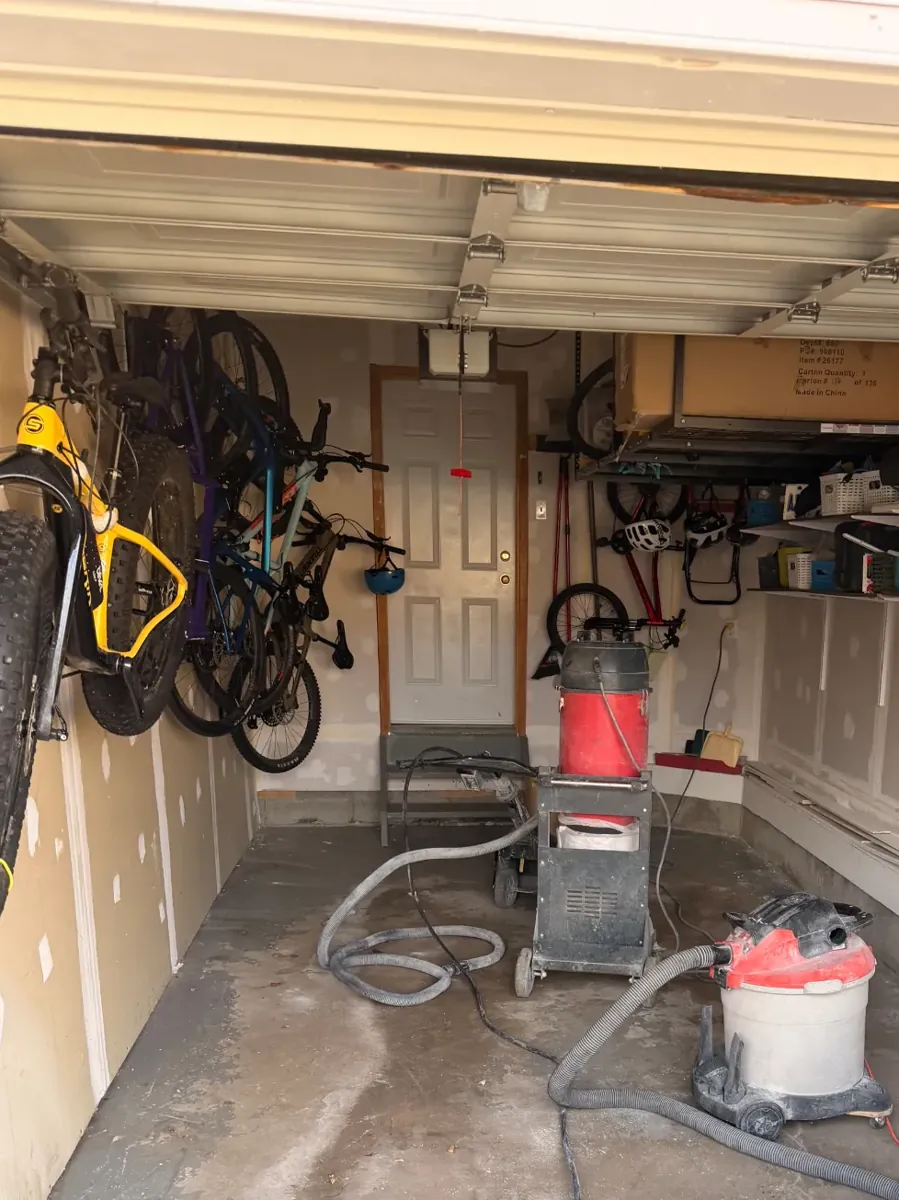

Loon flake, single garage
Blacktop flake, double garage

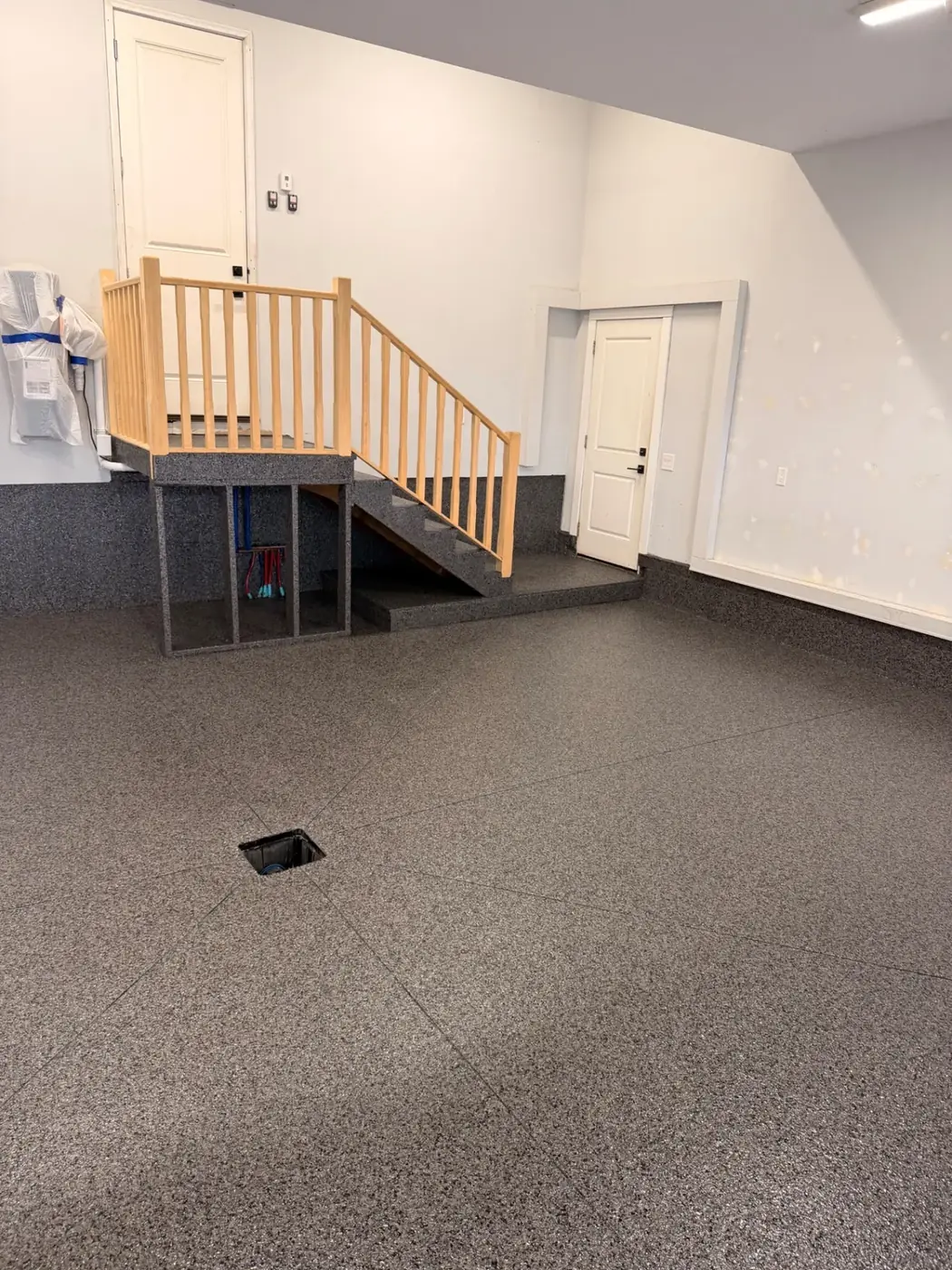

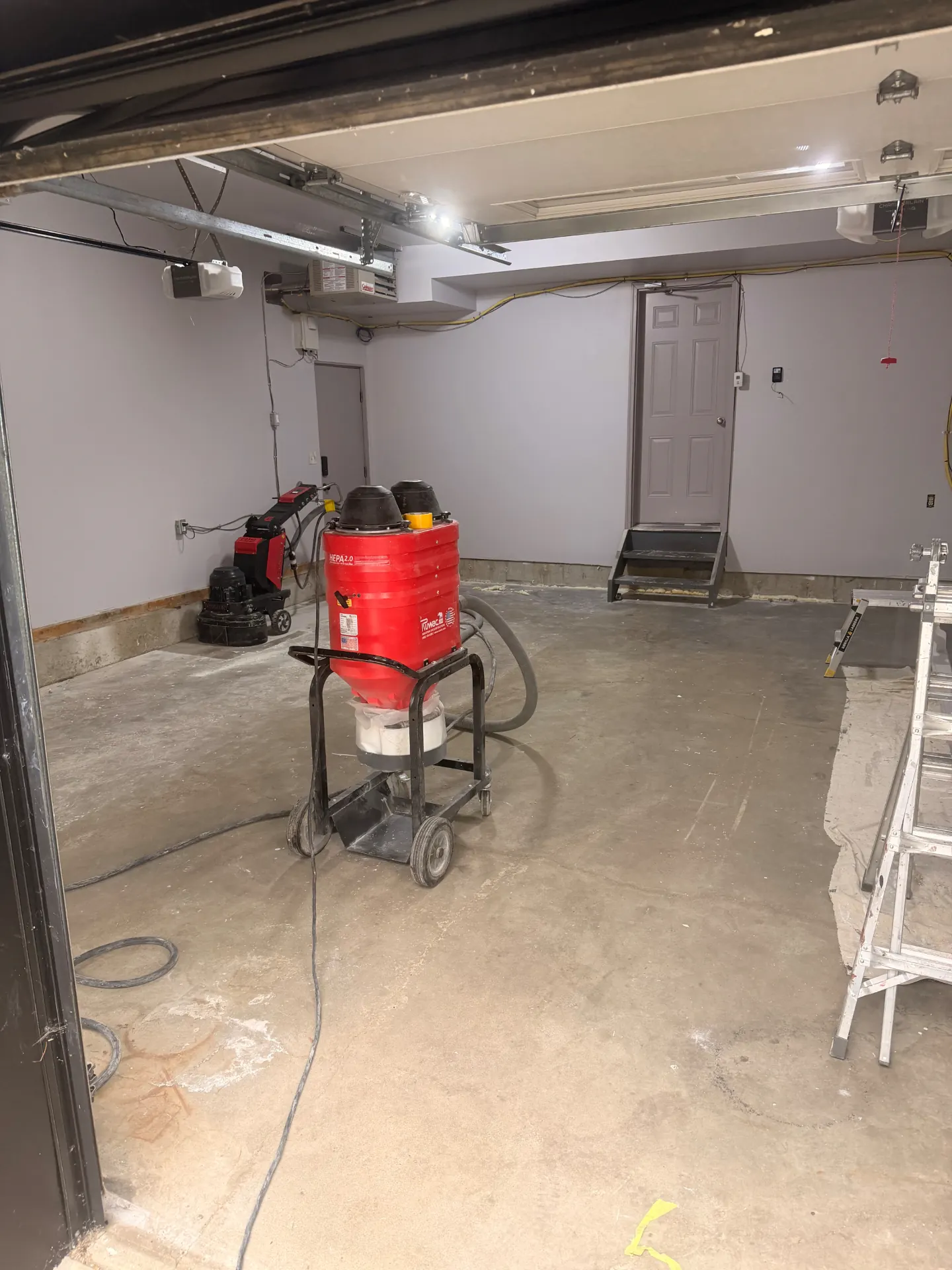

Darkside flake, garage floor, steps and stem walls
What is Flake Floors?
Flake epoxy flooring is a hybrid system built specifically for Edmonton garages. We pair a 100% solids epoxy base with a heavy-duty polyaspartic clear topcoat. The epoxy base cures slowly over 12 to 24 hours, giving it time to soak deep into the concrete pores for a permanent mechanical bond. Once the vinyl flakes are broadcast to full rejection, we seal everything with an industrial polyaspartic topcoat. That clear shield protects your floor against hot tires, winter road salts, and UV fading, while getting you back on the floor quickly.
How It Works
We start by diamond grinding the slab with dust-extracted industrial equipment to open the concrete pores and profile the surface. After testing for slab moisture, we apply a high-build 100% solids epoxy base coat. Because this base cures over 12 to 24 hours, it wicks deep into the concrete capillaries before setting. Fast-curing polyaspartics set up too quickly on the surface to match that root depth. Next, we broadcast decorative vinyl flakes to full rejection so no base coat shows through. On day two, we scrape and vacuum the floor flat, then seal it with a heavy polyaspartic clear coat that locks out chemicals and hot tire pickup.
Ideal For
See It In Action
Real installs from our crew in the Greater Edmonton Area.
Scrape and vacuum. Every loose chip comes off before the topcoat goes on.

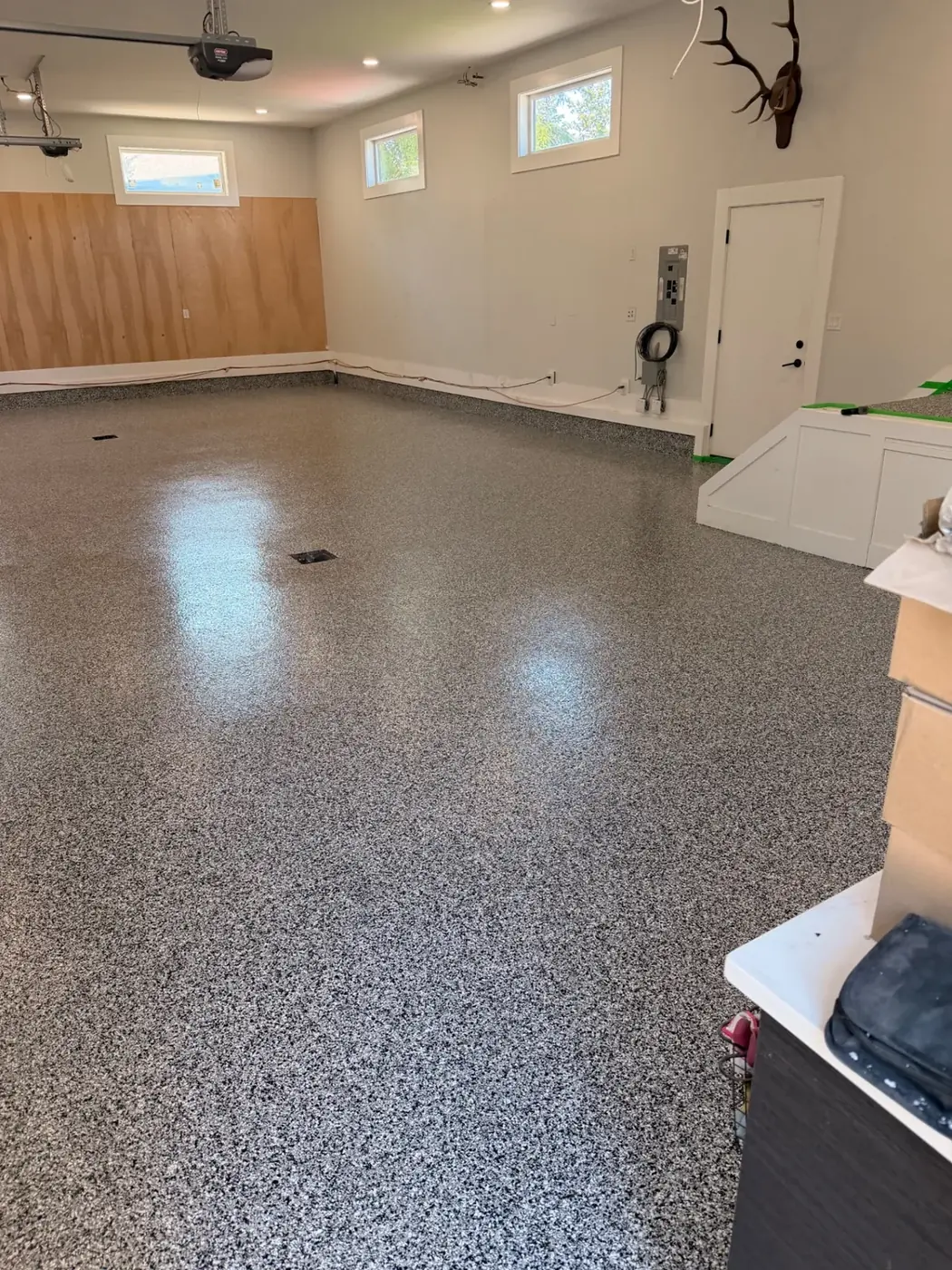

Topcoat cured. Wall-to-wall Wombat flake with a clean cove line and drain.
Rolling on the UV-stable polyaspartic topcoat, the final seal over the flake.
Treads and risers done in the same flake system as the floor.
Why We Use a Hybrid System (Not One-Day Polyaspartic)
Many companies advertise "one-day garage floor coatings" using 100% polyaspartic systems. While convenient, this approach sacrifices long-term performance for speed. Here's why we use epoxy base with polyaspartic topcoat:
| Aspect | Our Hybrid System | One-Day Polyaspartic |
|---|---|---|
| Concrete Penetration | Deep penetration. The epoxy wicks into concrete pores during a 12 to 24 hour cure. | Surface bond only. A 1 to 2 hour cure sets up before it can penetrate dense concrete. |
| Bond Strength | Mechanical lock anchored directly into the concrete matrix. | High risk of delamination when vehicle tires exert upward shear force. |
| Moisture Tolerance | Handles typical residential slab moisture without failing. | Extremely sensitive to moisture vapor, often blistering within two seasons. |
| Flake Adhesion | Slow-curing high-build epoxy embeds flakes securely to full rejection. | Fast surface skinning can leave loose flakes and thin coverage. |
| Hot Tire Resistance | Polyaspartic topcoat handles all tire heat and chemical contact. | Equivalent topcoat wear, but prone to peeling off the slab from underneath. |
| Return to Service | Foot traffic in 24 hours. Vehicle parking in 48 to 72 hours. | Vehicle parking in 24 hours, at the expense of long-term bond strength. |
Exterior Applications: System Selection Matters
For patios, pool decks, steps, and other exterior concrete, we use decorative broadcast systems designed for outdoor exposure, UV stability, traction, and freeze-thaw durability. The exact build is selected based on the substrate, moisture condition, drainage, sun exposure, and performance requirements of the project.

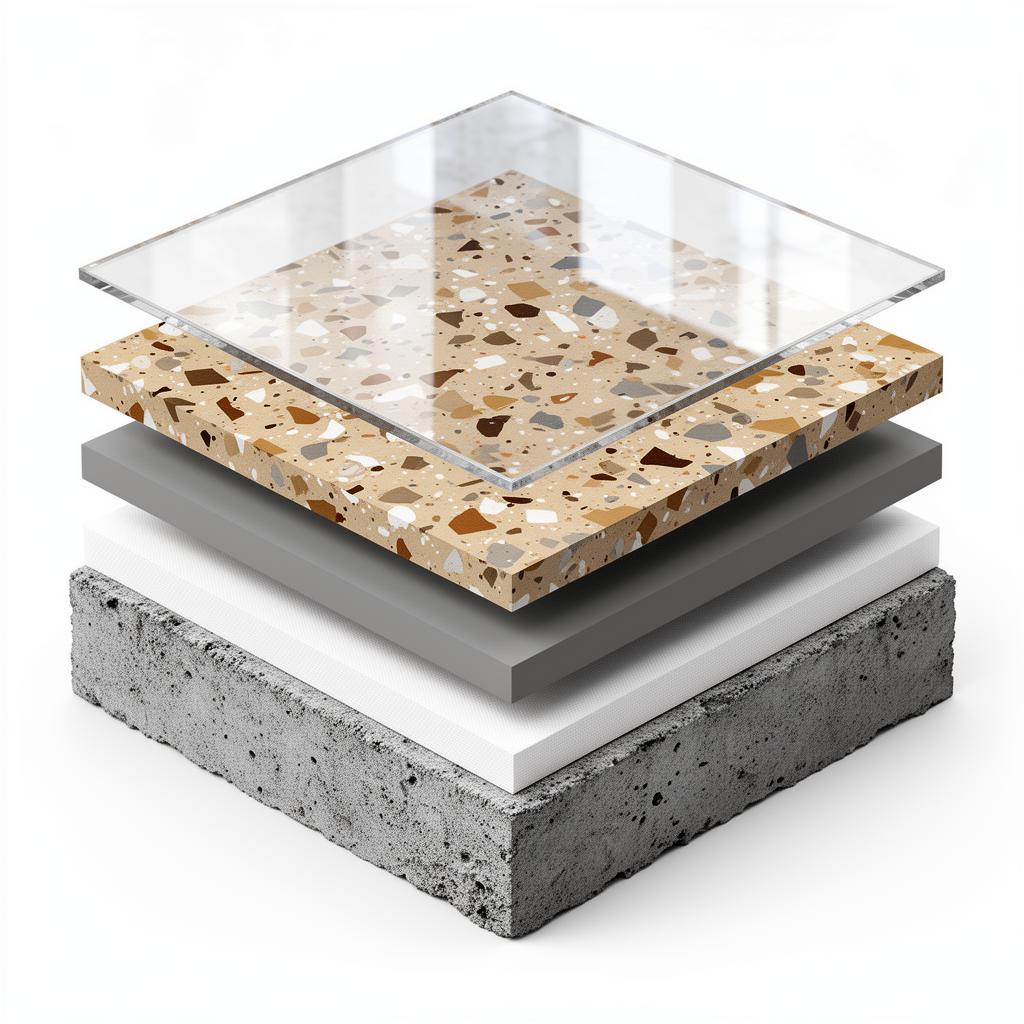

System Build-Up
Coating Layers (bottom to top)
Our Installation Process
Diamond Grinding
Industrial diamond grinding to remove contaminants, open concrete pores, and create proper surface profile for adhesion. No acid etching shortcuts.
Moisture Testing
Non-destructive moisture testing using Tramex CME5 impedance meter. If moisture exceeds 4-5 lbs MVER, a moisture vapor barrier is applied.
Crack and Joint Repair
Filling cracks, spalls, and damaged areas with appropriate repair materials.
Moisture Vapor Barrier (If Required)
When moisture testing indicates elevated levels, a vapor barrier system is applied to prevent moisture transmission and coating failure.
100% Solids Epoxy Base Coat
Applying high-build 100% solids epoxy. The 12-24 hour cure time allows deep penetration into concrete pores for maximum adhesion.
Full Flake Broadcast
Broadcasting decorative vinyl flakes into the wet epoxy at full coverage. The epoxy holds flakes securely during its extended cure.
Scrape and Vacuum
Scraping loose flakes and vacuuming to create a smooth, even surface for topcoat application.
Polyaspartic Topcoat
Applying UV-stable polyaspartic clear coat for hot tire resistance, chemical protection, and long-term durability.
What's Included
Flake Color Options
Click to save your favorite colors, then request a quote with your selections. Custom blends are also available.
Polar
Comet
Timberwolf
Coyote
Buffalo
Shoreline
Care & Maintenance
Sweep or dust mop regularly to remove debris. Clean with water and a pH-neutral cleaner as needed. Avoid harsh chemicals, abrasive cleaners, or rubber-backed mats which can discolor the surface. Clean up chemical spills promptly to prevent staining.
